casesElement

Element functions can be customized with set and show rules.

A case distinction.

Content across different branches can be aligned with the & symbol.

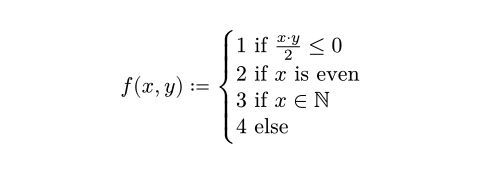

Example

$ f(x, y) := cases(
  1 "if" (x dot y)/2 <= 0,
  2 "if" x "is even",
  3 "if" x in NN,
  4 "else",
) $

Parameters

delim

none or str or symbol or array

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: ("{", "}")

The delimiter to use.

Can be a single character specifying the left delimiter, in which case the right delimiter is inferred. Otherwise, can be an array containing a left and a right delimiter.

View example

#set math.cases(delim: "[")
$ x = cases(1, 2) $

reverse

bool

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: false

Whether the direction of cases should be reversed.

View example

#set math.cases(reverse: true)
$ cases(1, 2) = x $

gap

relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: 0% + 0.2em

The gap between branches.

View example

#set math.cases(gap: 1em)
$ x = cases(1, 2) $

children

content

RequiredPositional

Positional parameters are specified in order, without names.

Variadic

Variadic parameters can be specified multiple times.

The branches of the case distinction.
