• Circle

circleElement

Element functions can be customized with set and show rules.

A circle with optional content.

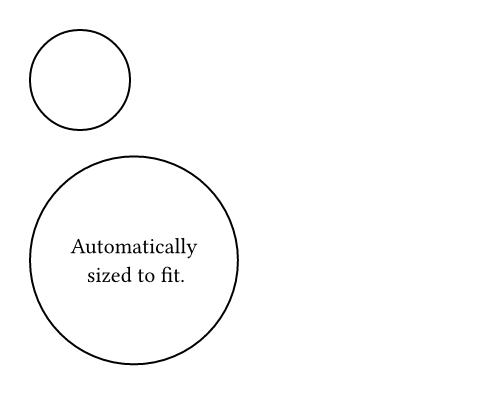

Example

// Without content.
#circle(radius: 25pt)

// With content.
#circle[
  #set align(center + horizon)
  Automatically \
  sized to fit.
]

Parameters

radius

length

Default: 0pt

The circle’s radius. This is mutually exclusive with width and height.

width

auto or relative

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: auto

The circle’s width. This is mutually exclusive with radius and height.

In contrast to radius, this can be relative to the parent container’s width.

height

auto or relative or fraction

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: auto

The circle’s height. This is mutually exclusive with radius and width.

In contrast to radius, this can be relative to the parent container’s height.

fill

none or color or gradient or tiling

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: none

How to fill the circle. See the rectangle’s documentation for more details.

stroke

none or auto or length or color or gradient or stroke or tiling or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: auto

How to stroke the circle. See the rectangle’s documentation for more details.

inset

relative or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: 0% + 5pt

How much to pad the circle’s content. See the box’s documentation for more details.

outset

relative or dictionary

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: (:)

How much to expand the circle’s size without affecting the layout. See the box’s documentation for more details.

body

none or content

Positional

Positional parameters are specified in order, without names.

Settable

Settable parameters can be customized for all following uses of the function with a set rule.

Default: none

The content to place into the circle. The circle expands to fit this content, keeping the 1-1 aspect ratio.
