color

A color in a specific color space.

Typst supports:

sRGB through the rgb function
Device CMYK through the cmyk function
D65 Gray through the luma function
Oklab through the oklab function
Oklch through the oklch function
Linear RGB through the color.linear-rgb function
HSL through the color.hsl function
HSV through the color.hsv function
Color spaces described by spot colorants through the color.spot type

All color spaces except for CMYK and spot colorants have alpha channels.

Throughout the documentation, we use the term process color for colors that can be blended with each other (currently all colors other than spot colors). In this term, process signifies that the shade is being created throughout the printing process instead of ahead of time.

Example

#rect(fill: aqua)

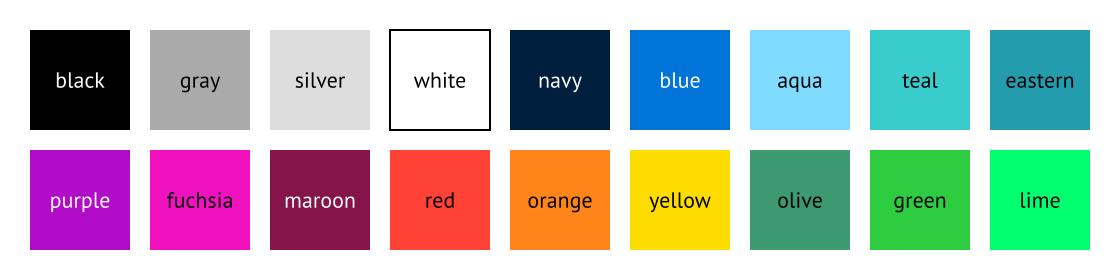

Predefined colors

Typst defines the following built-in colors:

Color	Definition
`black`	`luma(0)`
`gray`	`luma(170)`
`silver`	`luma(221)`
`white`	`luma(255)`
`navy`	`rgb("#001f3f")`
`blue`	`rgb("#0074d9")`
`aqua`	`rgb("#7fdbff")`
`teal`	`rgb("#39cccc")`
`eastern`	`rgb("#239dad")`
`purple`	`rgb("#b10dc9")`
`fuchsia`	`rgb("#f012be")`
`maroon`	`rgb("#85144b")`
`red`	`rgb("#ff4136")`
`orange`	`rgb("#ff851b")`
`yellow`	`rgb("#ffdc00")`
`olive`	`rgb("#3d9970")`
`green`	`rgb("#2ecc40")`
`lime`	`rgb("#01ff70")`

The predefined colors and the most important color constructors are available globally and also in the color type’s scope, so you can write either color.red or just red.

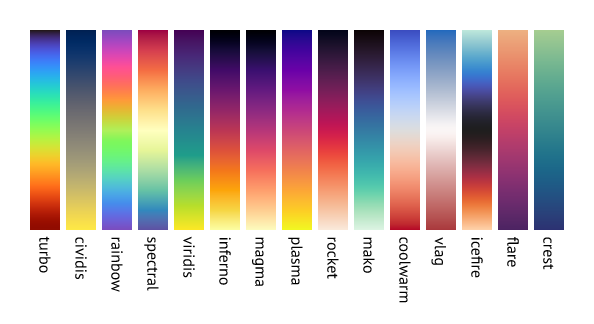

Predefined color maps

Typst also includes a number of preset color maps that can be used for gradients. These are simply arrays of colors defined in the module color.map.

#circle(fill: gradient.linear(..color.map.crest))

Map	Details
`turbo`	A perceptually uniform rainbow-like color map. Read this blog post for more details.
`cividis`	A blue to gray to yellow color map. See this blog post for more details.
`rainbow`	Cycles through the full color spectrum. This color map is best used by setting the interpolation color space to HSL. The rainbow gradient is not suitable for data visualization because it is not perceptually uniform, so the differences between values become unclear to your readers. It should only be used for decorative purposes.
`spectral`	Red to yellow to blue color map.
`viridis`	A purple to teal to yellow color map.
`inferno`	A black to red to yellow color map.
`magma`	A black to purple to yellow color map.
`plasma`	A purple to pink to yellow color map.
`rocket`	A black to red to white color map.
`mako`	A black to teal to white color map.
`coolwarm`	A blue to white to red color map with smooth transitions.
`vlag`	A light blue to white to red color map.
`icefire`	A light teal to black to orange color map.
`flare`	A orange to purple color map that is perceptually uniform.
`crest`	A light green to blue color map.

Some popular presets are not included because they are not available under a free licence. Others, like Jet, are not included because they are not color blind friendly. Feel free to use or create a package with other presets that are useful to you!

Definitions

`luma`

Create a grayscale color.

A grayscale color is represented internally by a single lightness component.

These components are also available using the components method.

View example

#for x in range(250, step: 50) {
  box(square(fill: luma(x)))
}

color.luma(

int ratio,ratio,color,

) → color

`lightness`
int or ratio
RequiredPositional

The lightness component.

`alpha`
ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to grayscale.

If this is given, the lightness should not be given.

`oklab`

Create an Oklab color.

This color space is well suited for the following use cases:

Color manipulation such as saturating while keeping perceived hue
Creating grayscale images with uniform perceived lightness
Creating smooth and uniform color transition and gradients

A linear Oklab color is represented internally by an array of four components:

lightness (ratio)
a (float or ratio. Ratios are relative to 0.4; meaning 50% is equal to 0.2)
b (float or ratio. Ratios are relative to 0.4; meaning 50% is equal to 0.2)
alpha (ratio)

These components are also available using the components method.

View example

#square(
  fill: oklab(27%, 20%, -3%, 50%)
)

color.oklab(

ratio,float ratio,float ratio,ratio,color,

) → color

`lightness`
ratio
RequiredPositional

The lightness component.

`a`
float or ratio
RequiredPositional

The a (“green/red”) component.

`b`
float or ratio
RequiredPositional

The b (“blue/yellow”) component.

`alpha`
ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to Oklab.

If this is given, the individual components should not be given.

`oklch`

Create an Oklch color.

This color space is well suited for the following use cases:

Color manipulation involving lightness, chroma, and hue
Creating grayscale images with uniform perceived lightness
Creating smooth and uniform color transition and gradients

A linear Oklch color is represented internally by an array of four components:

lightness (ratio)
chroma (float or ratio. Ratios are relative to 0.4; meaning 50% is equal to 0.2)
hue (angle)
alpha (ratio)

These components are also available using the components method.

View example

#square(
  fill: oklch(40%, 0.2, 160deg, 50%)
)

color.oklch(

ratio,float ratio,angle,ratio,color,

) → color

`lightness`
ratio
RequiredPositional

The lightness component.

`chroma`
float or ratio
RequiredPositional

The chroma component.

`hue`
angle
RequiredPositional

The hue component.

`alpha`
ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to Oklch.

If this is given, the individual components should not be given.

`linear-rgb`

Create an RGB(A) color with linear luma.

This color space is similar to sRGB, but with the distinction that the color component are not gamma corrected. This makes it easier to perform color operations such as blending and interpolation. Although, you should prefer to use the oklab function for these.

A linear RGB(A) color is represented internally by an array of four components:

red (ratio)
green (ratio)
blue (ratio)
alpha (ratio)

These components are also available using the components method.

View example

#square(fill: color.linear-rgb(
  30%, 50%, 10%,
))

color.linear-rgb(

int ratio,int ratio,int ratio,int ratio,color,

) → color

`red`
int or ratio
RequiredPositional

The red component.

`green`
int or ratio
RequiredPositional

The green component.

`blue`
int or ratio
RequiredPositional

The blue component.

`alpha`
int or ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to linear RGB(A).

If this is given, the individual components should not be given.

`rgb`

Create an RGB(A) color.

The color is specified in the sRGB color space.

An RGB(A) color is represented internally by an array of four components:

red (ratio)
green (ratio)
blue (ratio)
alpha (ratio)

These components are also available using the components method.

View example

#square(fill: rgb("#b1f2eb"))
#square(fill: rgb(87, 127, 230))
#square(fill: rgb(25%, 13%, 65%))

color.rgb(

int ratio,int ratio,int ratio,int ratio,str,color,

) → color

`red`
int or ratio
RequiredPositional

The red component.

`green`
int or ratio
RequiredPositional

The green component.

`blue`
int or ratio
RequiredPositional

The blue component.

`alpha`
int or ratio
RequiredPositional

The alpha component.

`hex`
str
RequiredPositional

Alternatively: The color in hexadecimal notation.

Accepts three, four, six or eight hexadecimal digits and optionally a leading hash.

If this is given, the individual components should not be given.

View example

#text(16pt, rgb("#239dad"))[
  *Typst*
]

`color`
color
RequiredPositional

Alternatively: The color to convert to RGB(a).

If this is given, the individual components should not be given.

`cmyk`

Create a CMYK color.

This is useful if you want to target a specific printer. The conversion to RGB for display preview might differ from how your printer reproduces the color.

A CMYK color is represented internally by an array of four components:

cyan (ratio)
magenta (ratio)
yellow (ratio)
key (ratio)

These components are also available using the components method.

Note that CMYK colors are not currently supported when PDF/A output is enabled.

View example

#square(
  fill: cmyk(27%, 0%, 3%, 5%)
)

color.cmyk(

ratio,ratio,ratio,ratio,color,

) → color

`cyan`
ratio
RequiredPositional

The cyan component.

`magenta`
ratio
RequiredPositional

The magenta component.

`yellow`
ratio
RequiredPositional

The yellow component.

`key`
ratio
RequiredPositional

The key component.

`color`
color
RequiredPositional

Alternatively: The color to convert to CMYK.

If this is given, the individual components should not be given.

`hsl`

Create an HSL color.

This color space is useful for specifying colors by hue, saturation and lightness. It is also useful for color manipulation, such as saturating while keeping perceived hue.

An HSL color is represented internally by an array of four components:

hue (angle)
saturation (ratio)
lightness (ratio)
alpha (ratio)

These components are also available using the components method.

View example

#square(
  fill: color.hsl(30deg, 50%, 60%)
)

color.hsl(

angle,int ratio,int ratio,int ratio,color,

) → color

`hue`
angle
RequiredPositional

The hue angle.

`saturation`
int or ratio
RequiredPositional

The saturation component.

`lightness`
int or ratio
RequiredPositional

The lightness component.

`alpha`
int or ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to HSL.

If this is given, the individual components should not be given.

`hsv`

Create an HSV color.

This color space is useful for specifying colors by hue, saturation and value. It is also useful for color manipulation, such as saturating while keeping perceived hue.

An HSV color is represented internally by an array of four components:

hue (angle)
saturation (ratio)
value (ratio)
alpha (ratio)

These components are also available using the components method.

View example

#square(
  fill: color.hsv(30deg, 50%, 60%)
)

color.hsv(

angle,int ratio,int ratio,int ratio,color,

) → color

`hue`
angle
RequiredPositional

The hue angle.

`saturation`
int or ratio
RequiredPositional

The saturation component.

`value`
int or ratio
RequiredPositional

The value component.

`alpha`
int or ratio
RequiredPositional

The alpha component.

`color`
color
RequiredPositional

Alternatively: The color to convert to HSL.

If this is given, the individual components should not be given.

`components`

Extracts the components of this color.

The size and values of this array depends on the color space. You can obtain the color space using space. Below is a table of the color spaces and their components:

Color space	C1	C2	C3	C4
`luma`	Lightness
`oklab`	Lightness	`a`	`b`	Alpha
`oklch`	Lightness	Chroma	Hue	Alpha
`linear-rgb`	Red	Green	Blue	Alpha
`rgb`	Red	Green	Blue	Alpha
`cmyk`	Cyan	Magenta	Yellow	Key
`hsl`	Hue	Saturation	Lightness	Alpha
`hsv`	Hue	Saturation	Value	Alpha
`spot`	Tint

For the meaning and type of each individual value, see the documentation of the corresponding color space. The alpha component is optional and only included if the alpha argument is true. The length of the returned array depends on the number of components and whether the alpha component is included.

View example

// note that the alpha component is included by default
#rgb(40%, 60%, 80%).components()

self.components(alpha: bool) → array

`alpha`
bool
Default: `true`

Whether to include the alpha component.

`space`

Returns the constructor function for this color’s space.

Returns one of:

luma
oklab
oklch
linear-rgb
rgb
cmyk
hsl
hsv

View example

#let color = cmyk(1%, 2%, 3%, 4%)
#(color.space() == cmyk)

self.space() → spotany

`to-hex`

Returns the color’s RGB(A) hex representation (such as #ffaa32 or #020304fe). The alpha component (last two digits in #020304fe) is omitted if it is equal to ff (255 / 100%).

self.to-hex() → str

`lighten`

Lightens a color by a given factor.

self.lighten(ratio) → color

`factor`
ratio
RequiredPositional

The factor to lighten the color by.

`darken`

Darkens a color by a given factor.

self.darken(ratio) → color

`factor`
ratio
RequiredPositional

The factor to darken the color by.

`saturate`

Increases the saturation of a color by a given factor.

Only process colors can be saturated. If you want to saturate a spot color, convert it into a process color first.

self.saturate(ratio) → color

`factor`
ratio
RequiredPositional

The factor to saturate the color by.

`desaturate`

Decreases the saturation of a color by a given factor.

Only process colors can be desaturated. If you want to desaturate a spot color, convert it into a process color first.

self.desaturate(ratio) → color

`factor`
ratio
RequiredPositional

The factor to desaturate the color by.

`negate`

Produces the complementary color using a provided color space. You can think of it as the opposite side on a color wheel.

View example

#square(fill: yellow)
#square(fill: yellow.negate())
#square(fill: yellow.negate(space: rgb))

self.negate(space: auto spotany) → color

`space`
auto or spot or any
Default: `auto`

The color space used for the transformation. By default, a perceptual color space is used.

`rotate`

Rotates the hue of the color by a given angle.

This function only works on color models with a well-defined hue component, i.e. Oklch, HSL, and HSV.

self.rotate(

angle,space: any,

) → color

`angle`
angle
RequiredPositional

The angle to rotate the hue by.

`space`
any
Default: `oklch`

The color space used to rotate. By default, this happens in a perceptual color space (oklch).

`mix`

Create a color by mixing two or more colors.

In color spaces with a hue component (HSL, HSV, Oklch), only two colors can be mixed at once. Mixing more than two colors in such a space will result in an error!

View example

#set block(height: 20pt, width: 100%)
#block(fill: red.mix(blue))
#block(fill: red.mix(blue, space: rgb))
#block(fill: color.mix(red, blue, white))
#block(fill: color.mix((red, 70%), (blue, 30%)))

color.mix(

..color array,space: auto spotany,

) → color

`colors`
color or array
RequiredPositional
Variadic

The colors, optionally with weights, specified as a pair (array of length two) of color and weight (float or ratio).

The weights do not need to add to 100%, they are relative to the sum of all weights.

`space`
auto or spot or any
Default: `auto`

The color space to mix in. By default, this happens in a perceptual color space (oklab) or, if all colors use the same spot colorant, using that colorant.

All colors will be converted into this color space.

`transparentize`

Makes a color more transparent by a given factor.

This method is relative to the existing alpha value. If the scale is positive, calculates alpha - alpha * scale. Negative scales behave like color.opacify(-scale).

View example

#block(fill: red)[opaque]
#block(fill: red.transparentize(50%))[half red]
#block(fill: red.transparentize(75%))[quarter red]

self.transparentize(ratio) → color

`scale`
ratio
RequiredPositional

The factor to change the alpha value by.

`opacify`

Makes a color more opaque by a given scale.

This method is relative to the existing alpha value. If the scale is positive, calculates alpha + scale - alpha * scale. Negative scales behave like color.transparentize(-scale).

View example

#let half-red = red.transparentize(50%)
#block(fill: half-red.opacify(100%))[opaque]
#block(fill: half-red.opacify(50%))[three quarters red]
#block(fill: half-red.opacify(-50%))[one quarter red]

self.opacify(ratio) → color

`scale`
ratio
RequiredPositional

The scale to change the alpha value by.

spot

A spot colorant from which spot colors can be created.

Use spot colors to request a precise pigment in a professional print environment. Once you have created a spot colorant, you can create colors using its tint method.

Constructor

Create a new spot colorant.

color.spot(

none str,color,

) → spot

`name`
none or str
RequiredPositional

Name of the spot colorant to use.

In production, this name will be manually checked and matched to a colorant, so this value needs to be unambiguous. It’s best to reference a color from a registry like PANTONE, HKS, RAL, Toyo & DIC, etc.

Values in here may be treated case-sensitively during production: "PANTONE 2221 C" and "PANTONE 2221 c" may be treated as separate colors. Ensure that you are using a consistent naming convention, either referencing a registry or through coordination with your production printing experts.

If this value is "all" and your print will involve multiple color plates, use of this colorant will result in the specified tint being applied equally to all plates. If you choose none, no colorant will be applied when using this color. Instead, you can use a spot color with the name none to indicate cuts or varnishes. Be sure to discuss this with your production printer!

We do not recommend using the names "Cyan", "Magenta", "Yellow", "Key", "Black", or their translations to your local language. Depending on your printer, they may or may not be interpreted as CMYK process colors.

Variant	Details
`"all"`	Use all available color plates instead of only a specific colorant.

`fallback`
color
RequiredPositional

How to render this color if the specified colorant is not available.

Many mediums, like on-screen preview and household printers, will not have this specific spot colorant available. To display an approximation of the intended print, another, available color is used instead.

Definitions on `spot`

`tint`

Create a spot color at a specific tint of this colorant.

The tint represents what percentage of the colorant is applied. A tint of 100% means the colorant is applied at full strength, while 0% means no colorant is applied.

View example

#let pantone = color.spot(
  "PANTONE 2221 C",
  rgb("#239dad")
)

#square(fill: pantone.tint(100%))
#square(fill: pantone.tint(70%))
#square(fill: pantone.tint(40%))

self.tint(ratio) → color

`value`
ratio
RequiredPositional

The tint percentage, between 0% and 100%.

CirclePrevious page

CurveNext page

colorGo to source

Example

Predefined colors

Predefined color maps

DefinitionsQuestion markFunctions and types can have associated definitions. These are accessed by specifying the function or type, followed by a period, and then the definition’s name.

lumaGo to source

lightnessint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alpharatioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

oklabGo to source

lightnessratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

afloat or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

bfloat or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alpharatioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

oklchGo to source

lightnessratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

chromafloat or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

hueangleRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alpharatioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

linear-rgbGo to source

redint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

greenint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

blueint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alphaint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

rgbGo to source

redint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

greenint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

blueint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alphaint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

hexstrRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

cmykGo to source

cyanratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

magentaratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

yellowratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

keyratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

hslGo to source

hueangleRequiredPositionalQuestion markPositional parameters are specified in order, without names.

saturationint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

lightnessint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alphaint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

hsvGo to source

hueangleRequiredPositionalQuestion markPositional parameters are specified in order, without names.

saturationint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

valueint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

alphaint or ratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

colorcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

componentsGo to source

alphaboolDefault: true

spaceGo to source

to-hexGo to source

lightenGo to source

factorratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

darkenGo to source

factorratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

saturateGo to source

factorratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

desaturateGo to source

factorratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

negateGo to source

spaceauto or spot or anyDefault: auto

rotateGo to source

angleangleRequiredPositionalQuestion markPositional parameters are specified in order, without names.

spaceanyDefault: oklch

mixGo to source

colorscolor or arrayRequiredPositionalQuestion markPositional parameters are specified in order, without names.VariadicQuestion markVariadic parameters can be specified multiple times.

spaceauto or spot or anyDefault: auto

transparentizeGo to source

scaleratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

opacifyGo to source

scaleratioRequiredPositionalQuestion markPositional parameters are specified in order, without names.

spotGo to source

ConstructorQuestion markIf a type has a constructor, you can call it like a function to create a new value of the type.

namenone or strRequiredPositionalQuestion markPositional parameters are specified in order, without names.

fallbackcolorRequiredPositionalQuestion markPositional parameters are specified in order, without names.

color

Definitions

`luma`

`lightness`
int or ratio
RequiredPositional

`alpha`
ratio
RequiredPositional

`color`
color
RequiredPositional

`oklab`

`lightness`
ratio
RequiredPositional

`a`
float or ratio
RequiredPositional

`b`
float or ratio
RequiredPositional

`alpha`
ratio
RequiredPositional

`color`
color
RequiredPositional

`oklch`

`lightness`
ratio
RequiredPositional

`chroma`
float or ratio
RequiredPositional

`hue`
angle
RequiredPositional

`alpha`
ratio
RequiredPositional

`color`
color
RequiredPositional

`linear-rgb`

`red`
int or ratio
RequiredPositional

`green`
int or ratio
RequiredPositional

`blue`
int or ratio
RequiredPositional

`alpha`
int or ratio
RequiredPositional

`color`
color
RequiredPositional

`rgb`

`red`
int or ratio
RequiredPositional

`green`
int or ratio
RequiredPositional

`blue`
int or ratio
RequiredPositional

`alpha`
int or ratio
RequiredPositional

`hex`
str
RequiredPositional

`color`
color
RequiredPositional

`cmyk`

`cyan`
ratio
RequiredPositional

`magenta`
ratio
RequiredPositional

`yellow`
ratio
RequiredPositional

`key`
ratio
RequiredPositional

`color`
color
RequiredPositional

`hsl`

`hue`
angle
RequiredPositional

`saturation`
int or ratio
RequiredPositional

`lightness`
int or ratio
RequiredPositional

`alpha`
int or ratio
RequiredPositional

`color`
color
RequiredPositional

`hsv`

`hue`
angle
RequiredPositional

`saturation`
int or ratio
RequiredPositional

`value`
int or ratio
RequiredPositional

`alpha`
int or ratio
RequiredPositional

`color`
color
RequiredPositional

`components`

`alpha`
bool
Default: `true`

`space`

`to-hex`

`lighten`

`factor`
ratio
RequiredPositional

`darken`

`factor`
ratio
RequiredPositional

`saturate`

`factor`
ratio
RequiredPositional

`desaturate`

`factor`
ratio
RequiredPositional

`negate`

`space`
auto or spot or any
Default: `auto`

`rotate`

`angle`
angle
RequiredPositional

`space`
any
Default: `oklch`

`mix`

`colors`
color or array
RequiredPositional
Variadic

`space`
auto or spot or any
Default: `auto`

`transparentize`

`scale`
ratio
RequiredPositional

`opacify`

`scale`
ratio
RequiredPositional

spot

Constructor

`name`
none or str
RequiredPositional

`fallback`
color
RequiredPositional

Definitions on `spot`

`tint`

`value`
ratio
RequiredPositional
