Under/Over
Delimiters above or below parts of an equation.
The braces and brackets further allow you to add an optional annotation below or above themselves.
Functions
underlineElementElement functions can be customized with set and show rules.
A horizontal line under content.
View example
$ underline(1 + 2 + ... + 5) $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content above the line.
overlineElementElement functions can be customized with set and show rules.
A horizontal line over content.
View example
$ overline(1 + 2 + ... + 5) $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content below the line.
underbraceElementElement functions can be customized with set and show rules.

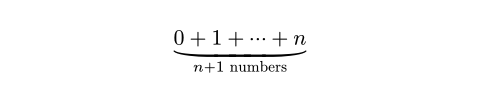

A horizontal brace under content, with an optional annotation below.
View example
$ underbrace(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content above the brace.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content below the brace.
overbraceElementElement functions can be customized with set and show rules.

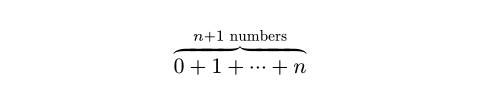

A horizontal brace over content, with an optional annotation above.
View example
$ overbrace(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content below the brace.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content above the brace.
underbracketElementElement functions can be customized with set and show rules.

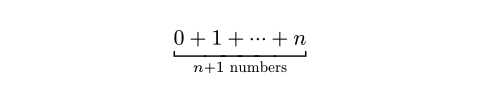

A horizontal bracket under content, with an optional annotation below.
View example
$ underbracket(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content above the bracket.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content below the bracket.
overbracketElementElement functions can be customized with set and show rules.
A horizontal bracket over content, with an optional annotation above.
View example
$ overbracket(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content below the bracket.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content above the bracket.
underparenElementElement functions can be customized with set and show rules.

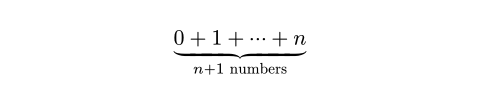

A horizontal parenthesis under content, with an optional annotation below.
View example
$ underparen(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content above the parenthesis.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content below the parenthesis.
overparenElementElement functions can be customized with set and show rules.
A horizontal parenthesis over content, with an optional annotation above.
View example
$ overparen(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content below the parenthesis.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content above the parenthesis.
undershellElementElement functions can be customized with set and show rules.
A horizontal tortoise shell bracket under content, with an optional annotation below.
View example
$ undershell(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content above the tortoise shell bracket.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content below the tortoise shell bracket.
overshellElementElement functions can be customized with set and show rules.
A horizontal tortoise shell bracket over content, with an optional annotation above.
View example
$ overshell(0 + 1 + dots.c + n, n + 1 "numbers") $
bodyRequiredPositionalPositional parameters are specified in order, without names.
The content below the tortoise shell bracket.
annotationPositionalPositional parameters are specified in order, without names.
Settable parameters can be customized for all following uses of the function with a set rule.
Default: none
The optional content above the tortoise shell bracket.
